Overview
Product main technical specifications: Shandong Luzhong Machine Tool has : More than 100,000m² of the factory with more than 200 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word .
Specification
| Package Size | 270.00cm * 240.00cm * 290.00cm Package Gross Weight 5700.000kg |
|---|
| Model NO. | VMC850 |
|---|
| Application | Metal |
|---|
| Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools |
|---|
| Movement Method | Linear Control |
|---|
| Control Method | Closed-Loop Control |
|---|
| Numerical Control | CNC/MNC |
|---|
| Precision | 0.01~0.02(mm) |
|---|
| Certification | GS, CE, RoHS, ISO 9001 |
|---|
| Condition | New |
|---|

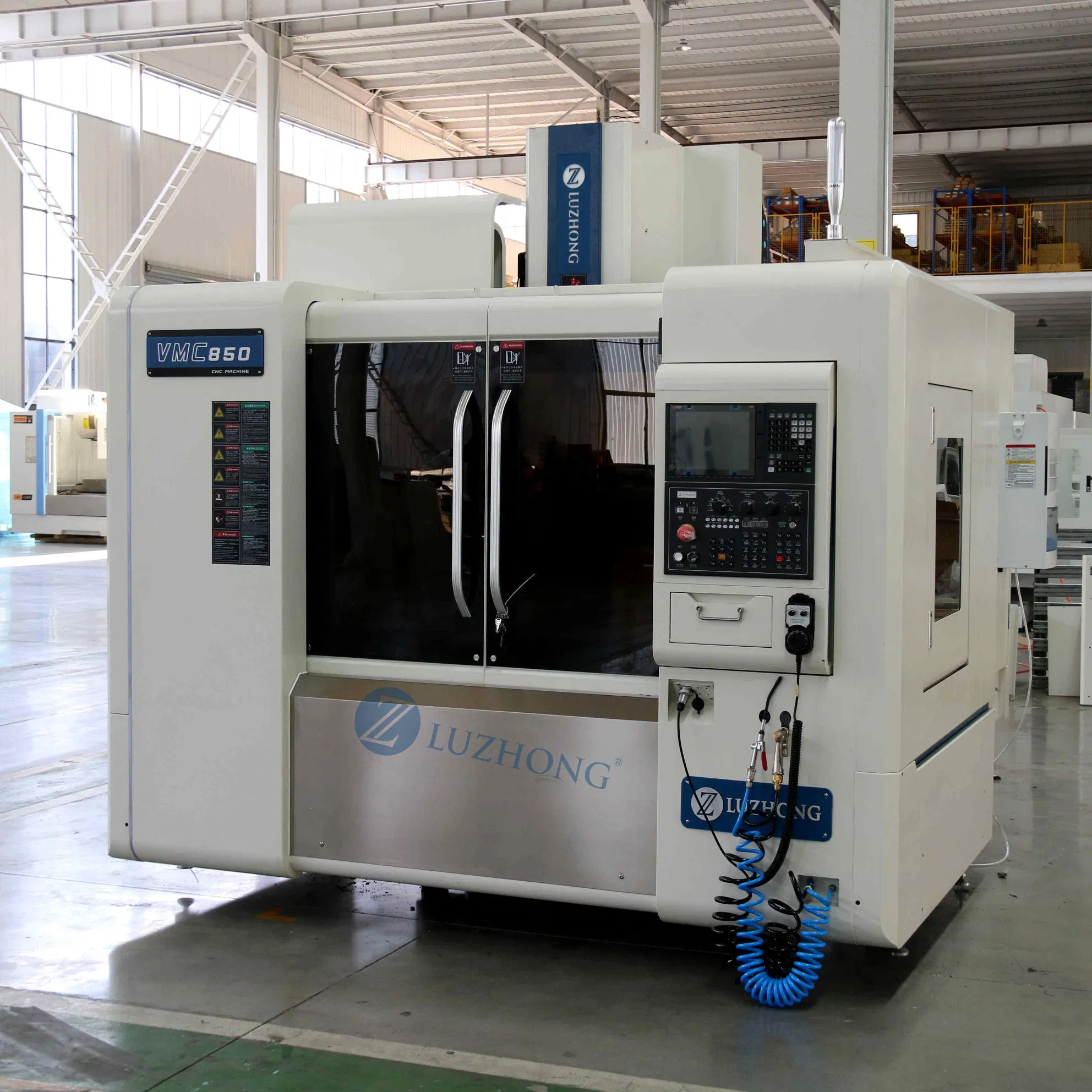

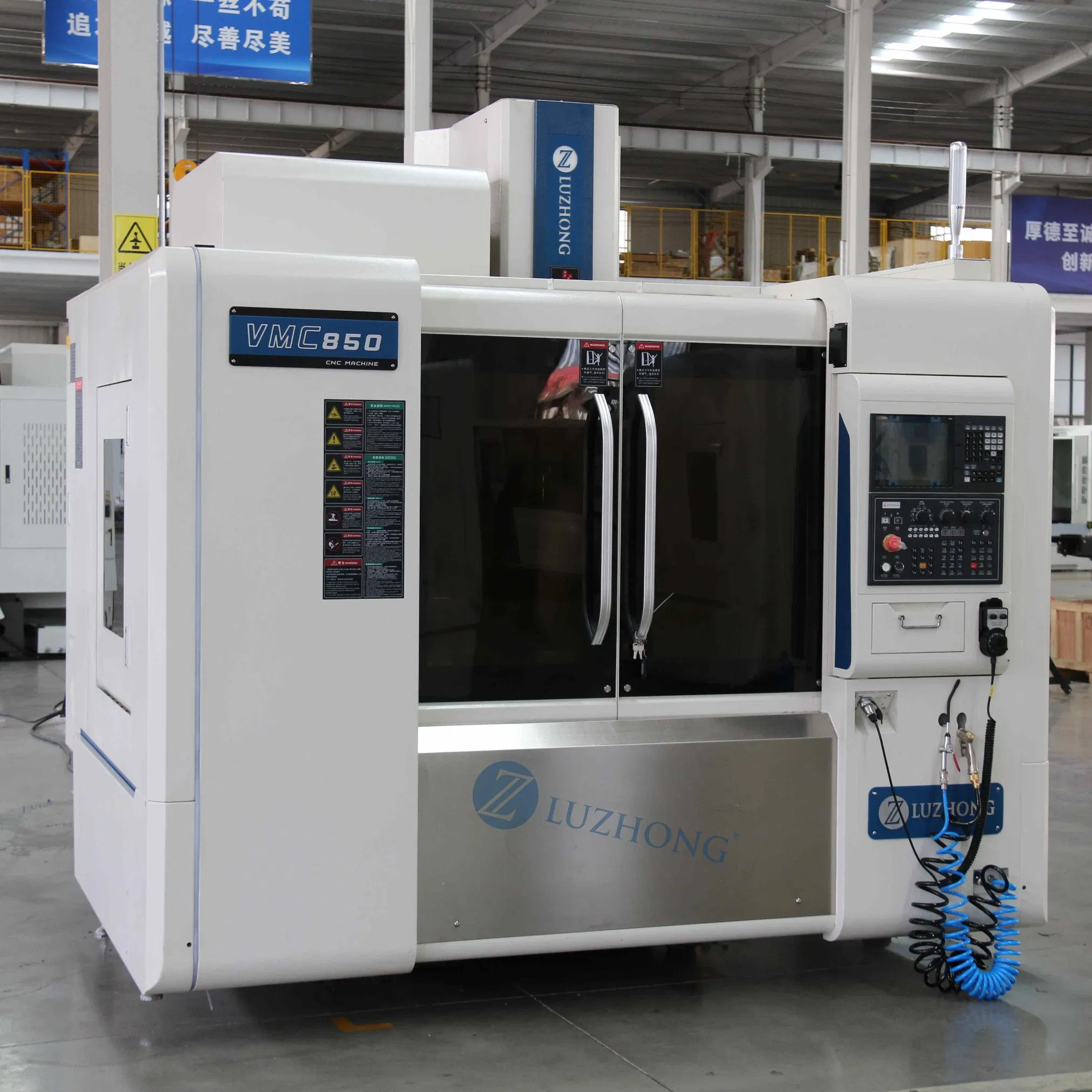

| Name | High Quality CNC Milling Machine VMC850 Vertical M |
|---|
| Table size | 1000*500 |
|---|
| X axis travel | 800 |
|---|
| Y axis travel | 500 |
|---|
| Z axis travel | 500 |
|---|
| Max. worktable load | 500 |
|---|
| T slot | (number-width-pitch) 5-18X100 |
|---|
| Max. spindle speed | 8000 Spindle taper BT40 |
|---|
| Main motor power | 7.5KW |
|---|
| Tool magazine | 24 Arm |
|---|
| Transport Package | Plywood Case and Steel Set Below |
|---|
| Specification | size: 3000x2400x2500 |
|---|
| Trademark | Luzhong |
|---|
| Origin | China |
|---|
| Production Capacity | 200sets/Month |
|---|
