Overview

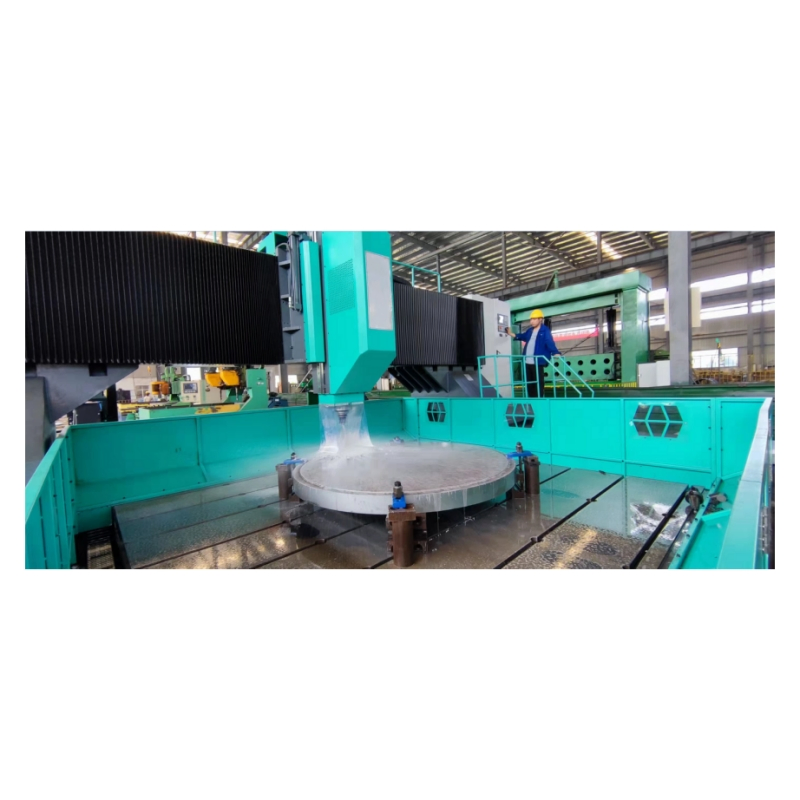

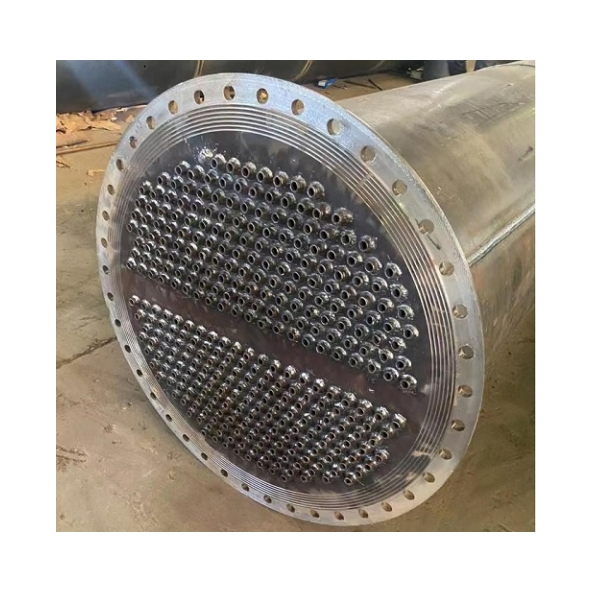

This machine is suitable for drilling plate & pipe,baffle and flange in the petrochemical,boiler,refrigeration,wind power flange and other industries.It can also be used in the drilling of connecting plate in the steel structure such as building,bridge,tower and so on. 1.
Specification
| Package Size | 5000.00cm * 2200.00cm * 2300.00cm Package Gross Weight 8000.000kg |
|---|
| Model NO. | PMD4040/2 |
|---|
| Structure | Vertical Drilling Machine |
|---|
| Layout | Vertical |
|---|
| Controlling Mode | CNC |
|---|
| Number of Shaft | 3 |
|---|
| Automatic Grade | Automatic |
|---|
| Precision | High Precision |
|---|
| Certification | CE, ISO 9001 |
|---|
| Condition | New |
|---|
| Processing Size | 4000X4000mm |
|---|
| Processing Thickness | 15-200mm |
|---|
| Spindle Qty | 2 |
|---|
| Diameter | 50mm (Twist Driller) / 40mm Hard Alloy |
|---|
| Model of Spindle | Bt50 |
|---|
| Feeding Stroke | 500mm |
|---|
| Tapping Diameter | M32mm |
|---|
| Spindle Motor | 22kw |
|---|
| Control Mode | Siemens System 828d |
|---|
| Dimension | 7000X6000X3500mm |
|---|
| Weight | 36000kg |
|---|
| Transport Package | Plastic Film as Standard Package |
|---|
| Trademark | FARIN |
|---|
| Origin | China |
|---|
| Production Capacity | 50 |
|---|
